600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine

Product Categories
Zhejiang Wellnit Mechanical Technology Co.,Ltd
Contact Now

600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine

Brand Name : WELLNIT

Model Number : LBS-60

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1set

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 1000sets/year

Delivery Time : 3-5days

Packaging Details : Wooden case

Model : LBS-60

Boring Diameter : 65-600mm

Rotation Speed : 0-118r/min

Boring Bar Length : 2500/3500/4500 etc

Contact Now

Portable Line Boring Machine
Modular structure, Easy to set up, Easy to operate, Multi-functional
Product Description
Driven Model Boring Diameter Rotation Speed

Electric

(LBE)

Hydraulic

(LBH)

CNC

(LBS)

 50 55-400mm 0-118r/min
60 65-600mm 0-118r/min
90 100-800mm 0-78r/min
110 180-900mm 0-62r/min
150 220-1000mm 0-55r/min
200 380-1200mm 0-38r/min
300 460-1600mm 0-28r/min

Portable Line Boring Machine is a kind of portable machining equipment mainly developed for field maintenance of engineering,energy and chemical equipment.

It is mainly used for the machining of small pipe inner hole and concentric interval hole, and widely used in excavators, cranes, loaders, cranes and other engineering machinery.

Product Show

600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine

600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine

600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine

600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine

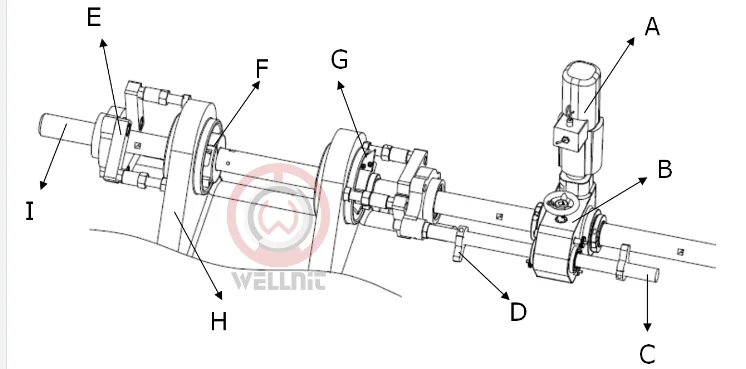

  • Select different models according to the size of the workpiece
  • Fix the boring bar by the support mechanism
  • Install the driver head
  • The machine is equipped with stroke limit block, which can determine the processing
  • stroke according to the processing needs
  • Machine can automatically feed, the processing efficiency is high, and the processing surface is smooth

Company Introduction

600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine

Exhibition

600mm Portable Line Boring Machine 118r/Min Inner Hole Grinding Machine
