Split Frame Pipe Cold Cutting And Beveling Machine Pnuematic Cutter

Product Categories
Zhejiang Wellnit Mechanical Technology Co.,Ltd
Contact Now

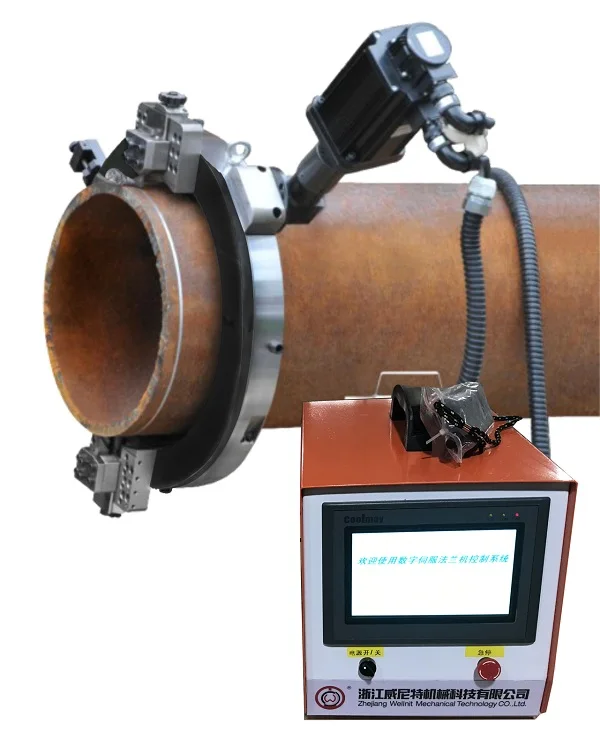

Split Frame Pipe Cold Cutting And Beveling Machine Pnuematic Cutter

Brand Name : WELLNIT

Model Number : OCE-762

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1set

Price : 7000USD/SET

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000sets/year

Delivery Time : 3-5days

Packaging Details : Wooden case

Material : Aluminum and Steel

Range : 610-762

Thickness : ≤110mm

Driven : Electric,pneumatic,hydraulic

Package : Wooden Case

Voltage : 220-240V

Power : 2kw

Contact Now

Split Frame Pipe Cold Cutting And Beveling MachinePnuematic Cutter

Production Description

This Series Are Stainless Steel Portable Pneumatic Pipe Cutterwith the following advantages:

  • Lighter weight,minimal radial space,easy to operate.Can separate to two half
  • Cold cutting only cutting,Only beveling, Cutting and beveling simultaneously
  • Driveing Type:Electric-OEC,Pneumatic-OCP,Hydraulic-OCH,NC-OCS
  • Can be process diffferent material pipe:carbon steel,stainless steel,alloy and ohers
  • Heavy duty steel body and aluminum body
  • Angle:0°-45°(As your requiry)

Technical Parameter

Model

Working Range(ID-OD)

 Wall Thickness Rotation Speed

Air

Pressure

Air Consumption
OCP-89 Φ25-89 3/4”-3” ≤30mm 50r/min 0.6Mpa 1500L/min
OCP-159 Φ50-159 2”-5” ≤30mm 21r/min 0.6Mpa 1500L/min
OCP-168 Φ50-168 2”-6” ≤30mm 21r/min 0.6Mpa 1500L/min
OCP-230 Φ80-230 3”-8’ ≤30mm 20r/min 0.6Mpa 1500L/min
OCP-275 Φ125-275 5”-10” ≤30mm 20r/min 0.6Mpa 1500L/min
OCP-305 Φ150-305 6”-10” ≤30mm 18r/min 0.6Mpa 1500L/min
OCP-325 Φ168-325 6”-12” ≤30mm 16r/min 0.6Mpa 1500L/min
OCP-377 Φ219-377 8”-14” ≤30mm 13r/min 0.6Mpa 1500L/min
OCP-426 Φ273-426 10”-16” ≤30mm 12r/min 0.7Mpa 1800L/min
OCP-457 Φ300-457 12”-18” ≤30mm 12r/min 0.7Mpa 1800L/min
OCP-508 Φ355-508 14”-20” ≤30mm 12r/min 0.7Mpa 1800L/min
OCP-560 Φ400-560 16”-22” ≤30mm 12r/min 0.7Mpa 1800L/min
OCP-610 Φ457-610 18”-24” ≤30mm 11r/min 0.7Mpa 1800L/min
OCP-630 Φ480-630 20”-24” ≤30mm 11r/min 0.7Mpa 1800L/min
OCP-660 Φ508-660 20”-26” ≤30mm 11r/min 0.7Mpa 1800L/min
OCP-715 Φ560-715 22”-28” ≤30mm 11r/min 0.7Mpa 1800L/min
OCP-762 Φ600-762 24”-30” ≤30mm 11r/min 0.8Mpa 2000L/min
OCP-830 Φ660-813 26”-32” ≤30mm 10r/min 0.8Mpa 2000L/min
OCP-914 Φ762-914 30”-36” ≤30mm 10r/min 0.8Mpa 2000L/min
OCP-1066 Φ914-1066 36”-42” ≤30mm 9r/min 0.8Mpa 2000L/min
OCP-1230 Φ1066-1230 42”-48” ≤30mm 8r/min 0.8Mpa 2000L/min

  • Suggest: size 1066 and above size select and use hydraulic type

Drive Model

Split Frame Pipe Cold Cutting And Beveling Machine Pnuematic CutterSplit Frame Pipe Cold Cutting And Beveling Machine Pnuematic Cutter

Electric Pneumatic

Split Frame Pipe Cold Cutting And Beveling Machine Pnuematic Cutter Split Frame Pipe Cold Cutting And Beveling Machine Pnuematic Cutter

Hydraulic CNC

Order Guide

Before you place order to us, please let us know the following information:

  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)
